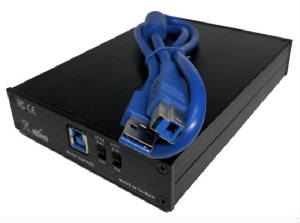

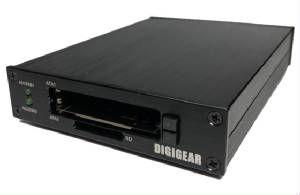

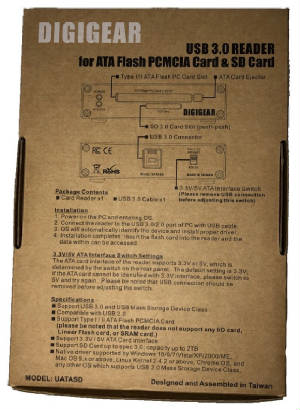

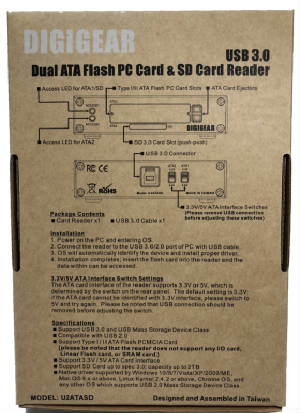

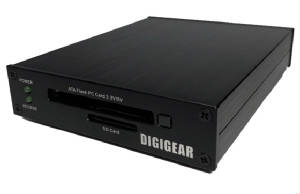

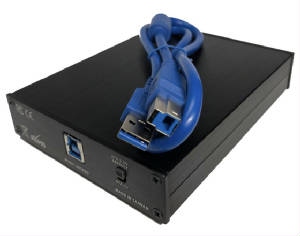

Digigear USB 3.0 ATA Flash PC card/PCMCIA & SD/SDHC/SDXC Card
reader writer : UATASD
1. Card reader X 1

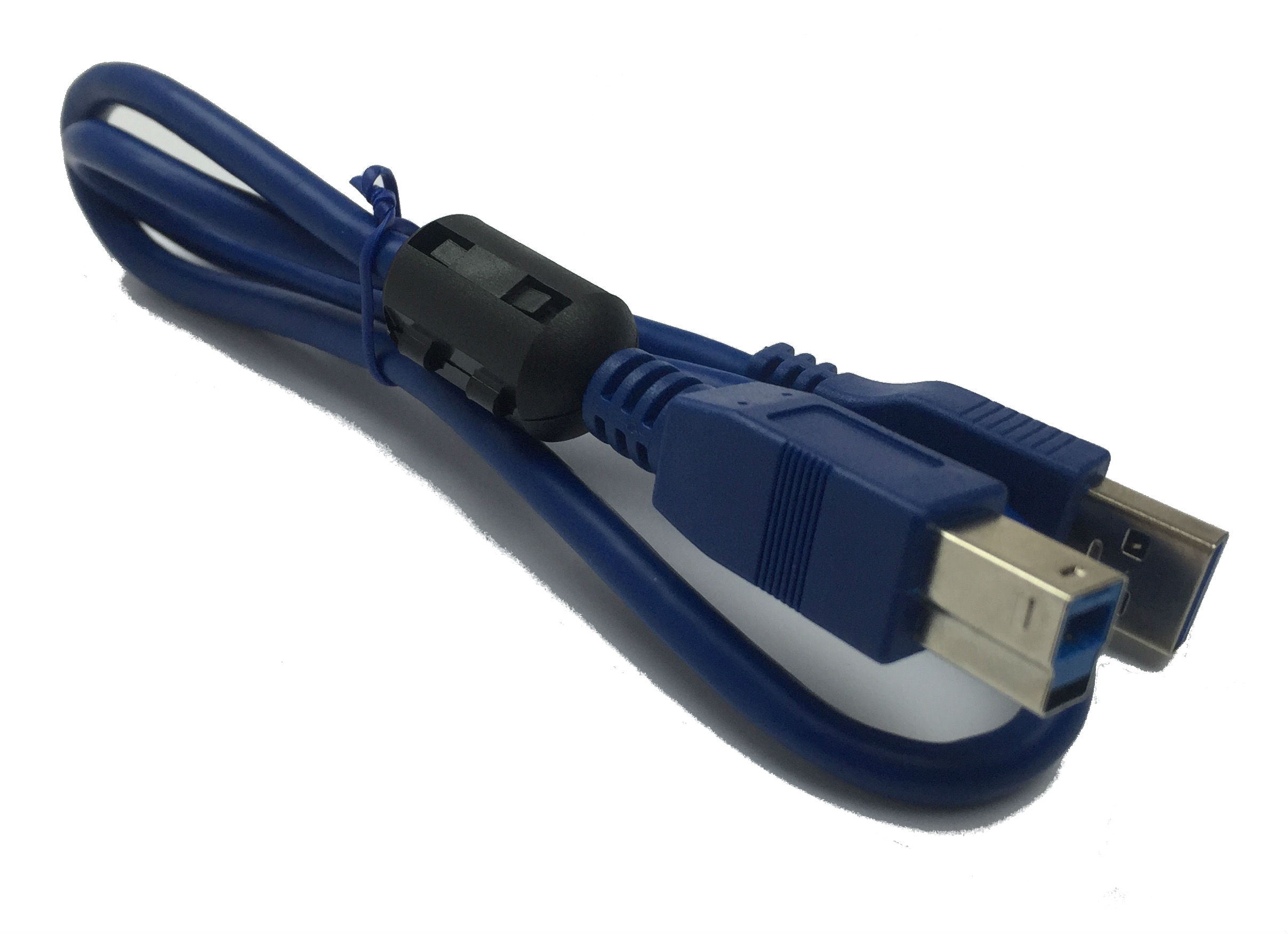

2. USB 3.0 cable X 1
1. Power on the PC and entering OS.
2. Connect the reader
to the USB 3.0/2.0 port of PC with the USB cable.
3. OS will automatically identify the device and install proper driver.
4. Installation completes; insert the flash card into the reader and the data within can be accessed.
3.3V/5V ATA interface switch settings:
The ATA card interface pf the reader
supports 3.3V or 5 V, which is determined by the switch on the rear panel. The default setting is 3.3V; if the ATA card can
not be identified with 3.3V interface, please switch to 5V and try again. Please be noted that the USB connection should be
removed before adjusting the switch.
Support USB 3.0 and USB mass storage device class
2. Compatible with USB 2.0
3. Support Type I/II ATA flash PCMCIA
card(please be noted that the reader does not support any I/O card, Linear Flashcard, or SRAM card)
4. Support 3.3 V
/5V ATA flash card interface
5. Support SD/SDHC/SDXC card up to spec 3.0; capacity up to 2TB
6. Native driver supportedby
WIndows 10/8/7/VISTA/XP/2000/ME, MacOS 9.x or above, Linux Kernal2.4.2 or above, Chrome OS, and any other OS which supports
USB 2.0 mass storage device class.

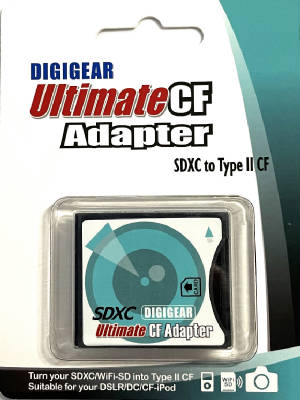

SD SDHC SDXC to CF type II Extreme/Ultimate Compact Flash Card Adapter : SDXCF
SDXCF is compatible with SD 3.0; it supports exFAT file system and accepts SD
in any speed class including Class2/4/6/10 and UHS-1. This adapter is also equipped with high-speed CF interface and the access
rate is faster than any similar products.
SDXCF supports converting SDXC, SDHC, SD, miniSD (with adapter), and
microSD (with adapter) to Type II CF. SDXCF also supports the latest Wireless LAN SD and standard SDIO cards. The compatibility
is better than previous generation product.
SDXCF is equipped with high-speed CF interface which supports UDMA
CF transfer mode. It can show the actual speed of inserted high speed SD card. Any similar products would always seriously
slow down the access rate of inserted media.However with SDxCF this situation would never occur.
SDXCF is very
convenient for any digital device equipped with CF Type II socket, like Digital Camera, DSLR, PDA, Digital Photo Frame, Card
Reader, Notebook, etc. You do not need a CF card for few CF devices, but you can use SD well instead of CF. Replace expensive
CF card with cheap and fast SD card and experience the power of Wireless LAN SD, all you need is SDXCF.
be noted that SDXCF will not accelerate the inserted media.
Before using a card within exFAT file system on SDXCF, please
make sure your CF device also supports exFAT; or you may not use them on the CF device.
Currently only Windows 7 / Vista
/ XP can support exFAT file system. (Windows XP requires Update for Windows XP-KB955704.)
SD interface supports SD spec 2.00 / 1.01; supports high speed(Class 10) and normal speed(Class 2/4/6) SDXC, SDHC,
SD interface is compatible with SD spec 3.01; accepts UHS-1 speed SDXC and SDHC.
SD interface supports
SD cards in all capacities.
SD interface accepts MicroSD or MiniSD with SD Adapter.
SD interface supports Wireless
LAN SD (iSDIO) or SDIO.
CF interface is compliant with CompactFlash (CF+) 4.1.
CF interface is compliant with
PC Card Standard 8.0 / PCMCIA 2.1 / JEIDA 4.2
Digigear SD SDHC SDXC to PC Card PCMCIA adapter ATA flash memory: SDXCPA
This adapter supports converting
SD, SDHC, SDXC, SDIO, iSDIO, miniSD (with adapter), microSD (with adapter), microSDHC/SDXC (with adapter), MMC, RS-MMC (with
adapter), MMC Plus, and
MMC Mobile (with Adapter) to Type II CardBus PC Card. A Push-Push socket is equipped for easy
insertion/extraction of supported cards.
Also compliant with SDIO specification, which allows you to use SDIO/iSDIO
card with all kinds of applications on your computer.
Compliant with 16/32-bit(CardBus) Type
II PC Card interface (JEIDA 4.2).
Maximum frequency reaches 33MHz.
Compliant with SD Memory Card Specification
Supports SDHC / High Speed SD Clock (50MHz)
Compliant with SDIO (required additional driver for respective
Supports iSDIO( Eye-Fi card, Wireless LAN SD, Wi-Fi SD )
Compliant with SD Host Controller Standard
Compliant with MultiMediaCard Specification 4.1.
Supports MMC Plus and MMC Mobile (with adapter.).
Push-Push card slot for easy insertion/extraction of card.
Low power consumption, 3.3V single power operation.
Software Suspend mode compliant with ACPI.
Supports Hardware Suspend.
Supporting file System: FAT(FAT12/FAt16)/FAT32/exFAT(FAT64)/NTFS
Device string in OS: SD to ATA/PCMCIA adapter device(no specific VID/PID, generic driver supported by OS)
Input Socket SD / SDHC /SDXC (SD Specification 1.01, 2.0, 3.01)
iSDIO, SDIO (SDIO Specification 1.1)
Output Interface 32-bit CardBus Type II PC Card
Supporting Card SDHC 4GB to 32GB above, SDXC
Adapter reruired for the followings,
miniSD, micro SD/SDHC/SDXC, MMC, MMC
Safety Approval CE / FCC
Dimensions 85.0 mm(L)* 54.0 mm(W)* 5.0 mm(H)

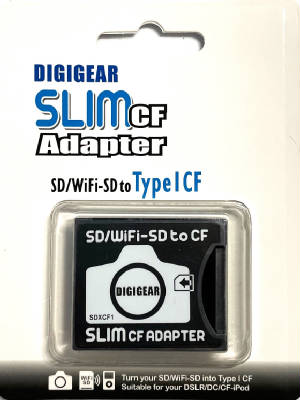

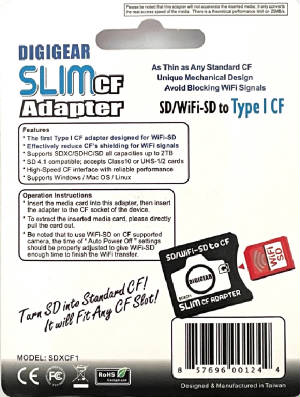

SLIM CF Adapter: SD/WiFi-SD to Type I CF: SDXCF1
As thin as any standard
Unique Mechanical Design
Avoid blocking WiFi signals
1. The first type I CF adapter designed for Wi-Fi-SD
2. Effective reduce CF's shielding for WiFi
3. Supports SDXC/SDHC/SD all capacity up to 2TB
4. SD 4.1 compatible; accepts class 10 or UHS-1/2 cards
5. High-Speed CF interface with reliable performance
6. Supports Windows / Mac OS / Linux
1. Insert the media card into this adapter, then insert the adapter
to the CF socket of the device
2. To Extract the inserted media card, please directly pull out the card.
3. Be noted
that to use Wi-Fi SD on CF supported camera, the time of " Auto Power Off" settings should be properly adjusted
to give Wi-Fi SD enough time to finish the WiFi transfer
SD into Standard CF!
It will fit any CF slot!
Note: Please be noted that this adapter will not accelerate the inserted media; it only converts the real access
speed of the media. There is a theoretical performance limit on 25 MB/s.

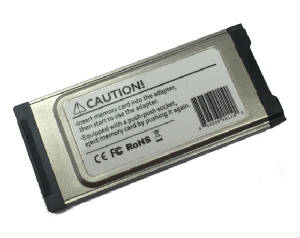

Digigear SD/SDHC/SDXC to Expresscard Adapter/Reader (for SONY XDCAM
EX) : SDXCEXP
For SONY SXS PRO and SXS-1 memory card application/replacement
SDXCEXP is the latest ExpressCard 34 Adapter,
which takes most of SD/SDHC/SDXC cards in the market. SDXCEXP up to max 2TB capacity is designed for future new card supporting.
With a smart push-push slot is for easy insertion of SD series card.
Compliant with USB Spec revision 2.0
super high speed 480Mb/s data transfer
Supports Memory cards:
Secure Digital (SD)
Supports SD version 2.0
SDXC up to 2TB memory capacity
Microsoft Windows XP
Microsoft Windows Vista
Microsoft Win 7
Mac 10.1.2 or above.
Fully CE/FCC/ RoHS compliant
DigiGear introduces DIY 3D Lenticular Photo Kit: EZ3D
3D Lenticular Photo DIY Kit; Frame, Lenses, and Software included. Contains everything you need to convert your favorite images into 3D
in just 3 easy steps! No Special 3D glasses required! Good for personal and photo shop; Print at home
or now you can print at retail and on-line photo labs.

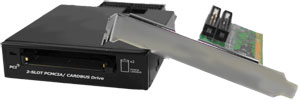

Digigear Industry Grade PCI Dual Front Load PCMCIA PC Cardbus Card Reader Writer Adapter TI PCI1520-PDV:
PCI to 2-slot PCMCIA
PC Card / Cardbus Front Drive supports any kinds of 3.3V and 5V PCMCIA/Cardbus cards. It shows 2 icons in My Computer and
allows Cardbus or PCMCIA card's Hot- Swap without power off system. The reader is an easy and quick installing to extend more
PCMCIA/ Cardbus card devices for any desktop PC.
compatible with 3.3V and 5V PCI signaling environment. .
Mix-and-match 5V/3.3V 16bits PC cards.
Dual PC Card Slot with hot insertion and removal.
Two I/O windows and two memory windows available
to each PCMCIA / Cardbus socket
Sanyo OS-CON Solid Capacitor design.
Compatible with Microsoft Windows VistaTM
and future versions
Microsoft Windows XP
Microsoft Windows 2000
Microsoft Windows Vista
Mac OS 10.4.10
Fully RoHS compliant
Supports ATA Flash
Card, CF Card w/ CF Adapter, SM w/ SM Adapter, IBM Microdrive, type III Hard Drive, Sony Memory Stick +Stick Adapter, Linear
Flash Cards (AMD, Intel II & II+, etc. chipsets), SRAM Card, Fax Modem Card, LAN Card, Panasonic P2 Card, Wireless LAN
card, I/O card, etc.
Re Trouble shooting
computer has Elan PCI card reader before, please remove Elan driver and make sure that your computer has the following file
Our readers use Windows Native driver,
PCMCIA card Drivers Information
Drivers are automatically installed by the
Windows when it recognizes a PC Card slot at installation, but often not installed if it doesn't. Typically these drivers
are not present on a desktop system since most customers add a PCI to PC Card drive reader well after Windows software is
installed on a system.
If you have a retail CD-ROM of the
Windows XP/Vista/7/8/10 installation disk, then this isn't an issue since simply inserting the CD-ROM during the new hardware
found routine will allow Windows to find and install the correct drivers. However, many end users purchase computers from
large vendors with Windows XP/Vista pre-installed and the CD-ROM they get with their system isn't a full copy of Windows (a
restore disk) although they paid in full for Windows. In this case the end users needs to contact their system vendor and
tell them that they need the "signed Microsoft Windows XP/Vista/7/8/10 drivers for the R5C485, R5C486, R5C843, or PCI1510"
depending on which controller their PC Card drive reader uses. The drivers may already be on a system in "C:\\WINDOWS\system32\DRIVERS\pcmcia.sys",
and instructing the installation routine to that file may help.
DigiGear introduces Low-Profile PCI to font-load PC Cardbus Adapter, PCD-TP110C.
PCD-TP110CS is a high-performance
PCI-to-PC Card Drive Unit that supports one independent card socket compliant with the 16/32-bit PC Card standard defined
in 1997 PC Card Standard. Provides a rich feature set that makes it the best choice for bridging between PCI and PC Card in
desktop computers. Compliant with the 16-bit PC Card specification defines in PCMCIA Release 2.1 and JEIDA 4.2 and can support
any combination of 16-bit or 32-bit PC Card in the one socket, powered at 5V or 3.3V as required. The host system interface
of PCD-TP110CS is compliant with the PCI Local Bus specification 2.2. PCD-TP110CS is register set compatible with Intel 82365SL
controller and compatible with ExCA, it enables the PCD-TP110CS to support almost all of the PC Card applications including:
SRAM card, Linear Flash card, ATA Flash card, Modem card and Wireless LAN card.
* PCD-TP110CS provides one
front-access PCMCIA / CardBus socket solution for PC.
* PCI Local Bus Specification Revision 2.2 compliant.
PCMCIA 2.1, JEIDA 4.2 compliant. 3.3V, 5.0V, or mixed 3.3V/5.0V operation.
* Intel 82365SL register compatible, ExCA
* The 3.5" front Drive Unit with built-in one socket is connected to the PCI Interface Board by
using the flat ribbon cable.
* There are one PC card socket that can be used for Type I / Type II / Type III PC Card
in this unit.
* Support IRQ steering (PCMCIA -16Bit), native driver built in Windows XP.
* Support IRQ steering
(PCMCIA -16Bit), optional driver provided in Windows Me or Windows 2000
Supports PC Cards (Type I/II/II)
PCMCIA: 8/16 Bit, 8 MHz, 3.3/5V.
CardBus: 32 Bit, 33 MHz, 3.3 V.
Digigear Introduces PCIe Interface ExpressCard Adapter fpr UDMA Mode CF Card: CFEXP/DR25
with ExpressCard standard running on PCI-e interface
Suitable for notebook /
computer with ExpressCard 34 / 54 slot
Support CompactFlash Type I / Type II
(both PIO and UDMA mode)
Extreme high speed for CF with UDMA mode -> read/write
speed can reach 40MB/sec
Compliant with RoHS, CE/FCC certification
Ideal solution for flash memory cards of large capacity
DigiGear introduces PCIe to Expresscard Adapters, PCIe-101/PCE01, PCE10, and PCU10.
The Latest PCI Express supports 2.5Gb/s data rate for a fastest
data transfer. This PCIe-101 accepts both 34mm and 54 mm express card and allows express card’s Hot- Plug and hot swap
without power off the system. The PCIe-101 is an easy and quick installing to extend more applications for personal desktop
The Latest PCI Express supports 5Gb/s data rate for a fastest
data transfer. This PCE10 accepts both 34mm and 54 mm ExpressCard. PCE10 is an easy and quick installing to extend more applications
for Indutrial PC using.
PCU10 supports USB-based ExpressCard/54 /34 adapters to any USB equipped computer
1 socket for USB 2.0 ExpressCard.
Quickly and easily adds one ExpressCard/54 slot (USB-based) to USB equipped desktop or notebook computers; allowing older
systems to use the latest ExpressCard adapter cards
Works with USB-based ExpressCard devices including Wireless
Wide Area Network modems (such as CDMA, EV-DO, GPRS, etc.), flash memory, flash card adapters, security, legacy I/O (PS2,
serial, parallel), optical disk drives, GPS receivers, and more…
